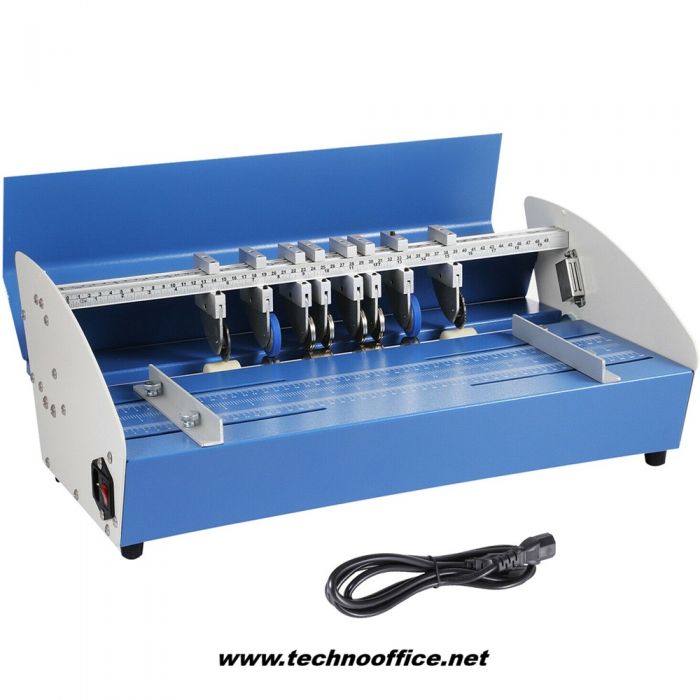

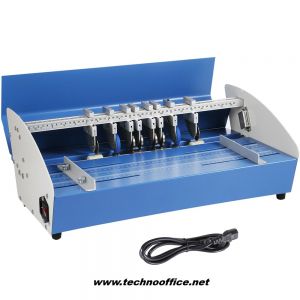

Vevor 520Е Electric Creasing, Perforating and Cutting Machine

The Vevor 520 3-in-1 electric creasing machine – a professional solution for precise creasing, perforating and cutting paper. This machine is ideal for printing houses, offices and individual users who need efficiency and quality in processing documents, cards, invitations and other printed materials.



Specifications



Speed: Fixed



Maximum paper width: 520 mm



Paper thickness/weight: 85-400 gsm



Creasing depth: Adjustable



Punching/folding/cutting width: 1 mm



Number of creasing elements: 2



Power supply: 220V, 60Hz



Package size: 21" x 14" x 9"/540 x 370 x 230 mm



Package weight: Approx. 13.6 kg



Thickest paper to cut: No more than 800 g sheets



Operation mode: Creasing, dotted line cutting function

Main Features:



-Maximum paper width: 520 mm, allowing for processing of various paper formats.



-Paper thickness: Suitable for paper weighing up to 400 g/m², providing flexibility when working with different materials.



-Functions: Creasing, perforating and cutting, combined in one device for maximum efficiency.



-Adjustable creasing depth: Allows adjustment according to the specific requirements of the project.

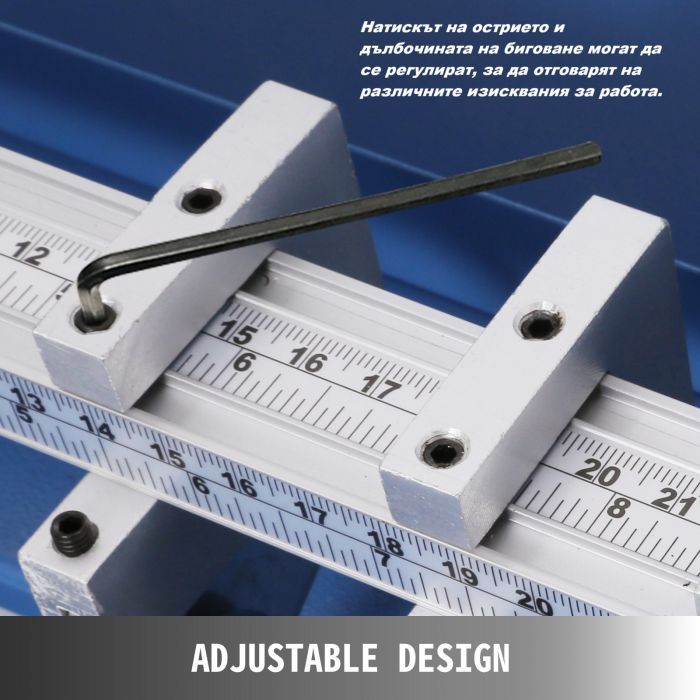

The pressure of the blade and the depth of the crease can be adjusted to meet different working requirements.



-Creasing/perforating/cutting width: 1 mm, providing precise results.

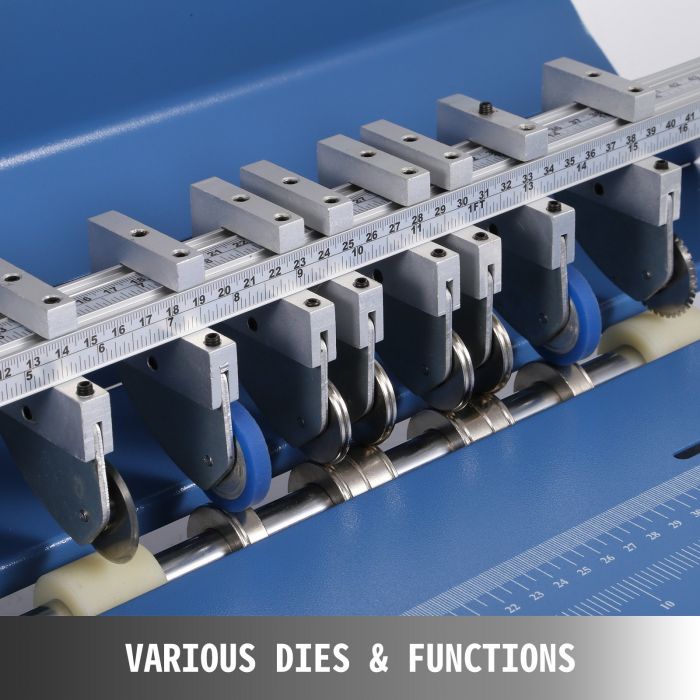

-Number of creasing elements: 2, for greater flexibility when working with different designs.



-Power supply: 220V, 60 Hz, suitable for standard electrical networks.

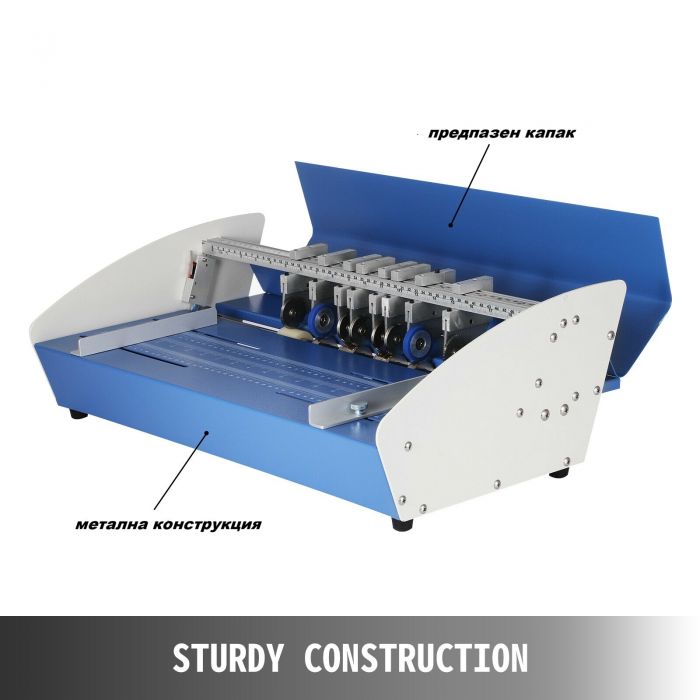

-Metal construction: Robust and durable, ensuring a long service life life.



-Compact dimensions: 540 x 370 x 230 mm, making it easy to integrate into different workspaces



Advantages:

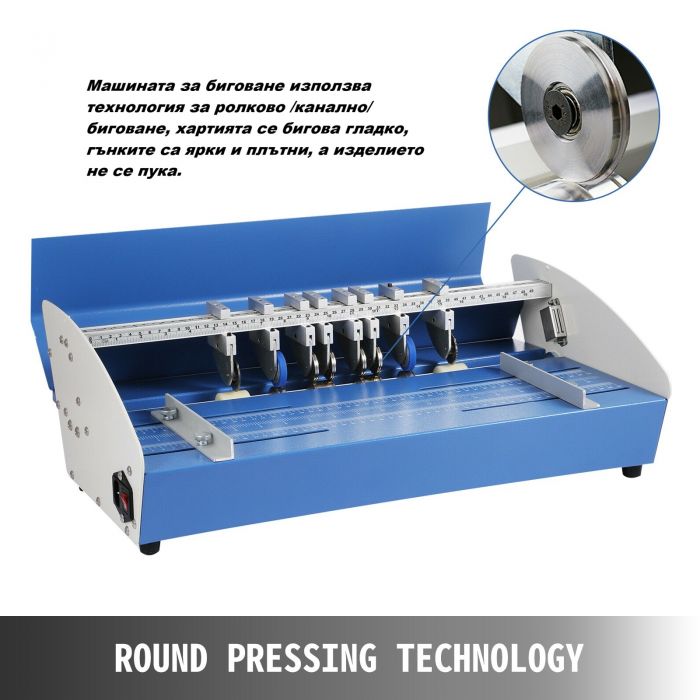

High-quality components: Steel knife holder and rubber rollers for precise and even creasing and perforating.

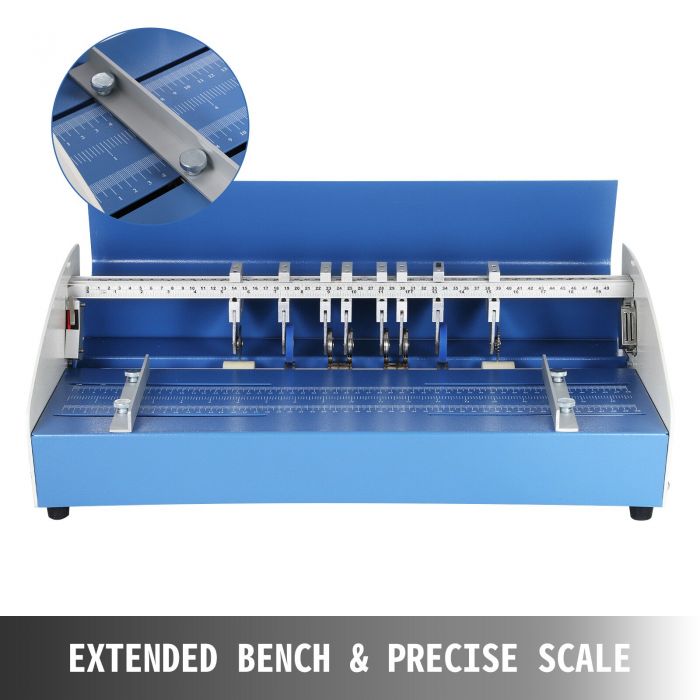

Ease of use: Intuitive design with mechanical side guides for accurate paper positioning.



Adjustable settings: Ability to easily adjust the depth of creasing and perforating as needed.



Multifunctionality: Combines three functions in one device, saving time and space.



You can see a clip of the machine in action at the following link:



https://www.youtube.com/watch?v=UP7Tzhp2zYI
